Issue Tracking Data Model

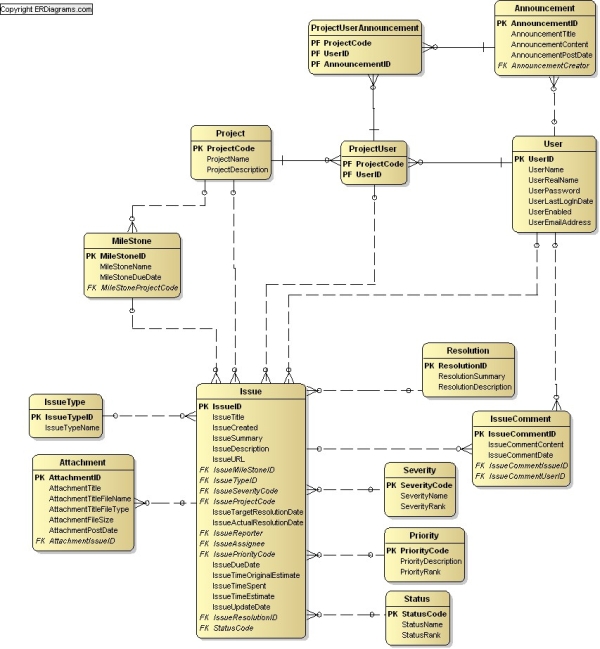

Issue tracking systems are commonly used in an organization's support center to create, update, and resolve reported issues. This is a data model for tracking project issues and allows you to manage and maintain lists of issues. Users can send announcements to project users. A resolution can be used for multiple issues.
Click on the image to enlarge
Notation: Crow's Foot
IDEF1X Notation | Crow's Foot Notation
Entities in this data model:
Issue ,User ,Project ,ProjectUser ,Announcement
Download This Data Model
The download is a zipfile containing .dez files (the data model), images of the data model, and a license agreement. The .dez file contains a data model with MS SQL Server 2005 as target database. You can easily switch the target database to another database (MS Access, MySQL, Oracle, PostgreSQL,...) in DeZign for Databases.
You must use DeZign for Databases to open/view/edit the data model(s) (.dez file).
Please read the license before downloading this data model.
