Discussion Forum Data Model
A discussion internet forum is a discussion area on a website. This discussion forum data model supports thread-based discussion with the option to follow a thread. Moderators may modify and delete threads and or posts. U user must agree to the forum terms before the user can post messages and/or start threads.

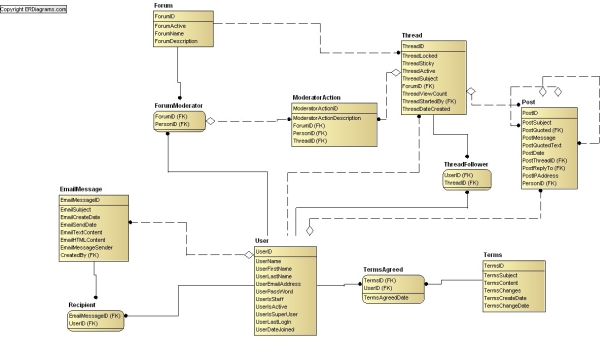

Click on the image to enlarge
Notation: IDEF1X
IDEF1X Notation | Crow's Foot Notation
Entities in this data model:
User ,Forum ,Thread ,Terms ,TermsAgreed ,ForumModerator ,Post ,ThreadFollower ,ModeratorAction ,EmailMessage ,Recipient
Download This Data Model
The download is a zipfile containing .dez files (the data model), images of the data model, and a license agreement. The .dez file contains a data model with MS SQL Server 2005 as target database. You can easily switch the target database to another database (MS Access, MySQL, Oracle, PostgreSQL,...) in DeZign for Databases.
You must use DeZign for Databases to open/view/edit the data model(s) (.dez file).
Please read the license before downloading this data model.
