Products Data Model

This model stores common product information such as name, description (document), availability, and other characteristics like color etc. For further customization of the product, the features can be used.

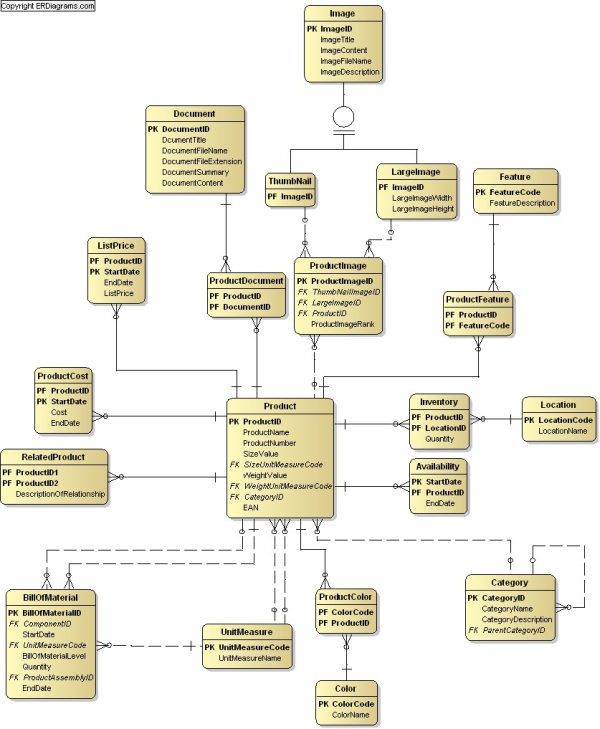

Products Data Model, ERD in idef1x and crows foot notation

Click on the image to enlarge

Notation: Crow's Foot
IDEF1X Notation | Crow's Foot Notation

Entities in this data model:
Availability ,BillOfMaterial ,Category ,Color ,Document ,Feature ,Image ,Inventory ,LargeImage ,ListPrice ,Location ,Product ,ProductColor ,ProductCost ,ProductDocument ,ProductFeature ,ProductImage ,RelatedProduct ,ThumbNail ,UnitMeasure

Download This Data Model

The download is a zipfile containing .dez files (the data model), images of the data model, and a license agreement. The .dez file contains a data model with MS SQL Server 2005 as target database. You can easily switch the target database to another database (MS Access, MySQL, Oracle, PostgreSQL,...) in DeZign for Databases.

You must use DeZign for Databases to open/view/edit the data model(s) (.dez file).
