Person Data Model

This model describes a person. The model supports the storage of historical data. These are the entities with attributes FromDate and ToDate. Please note that the address entity is not complete.

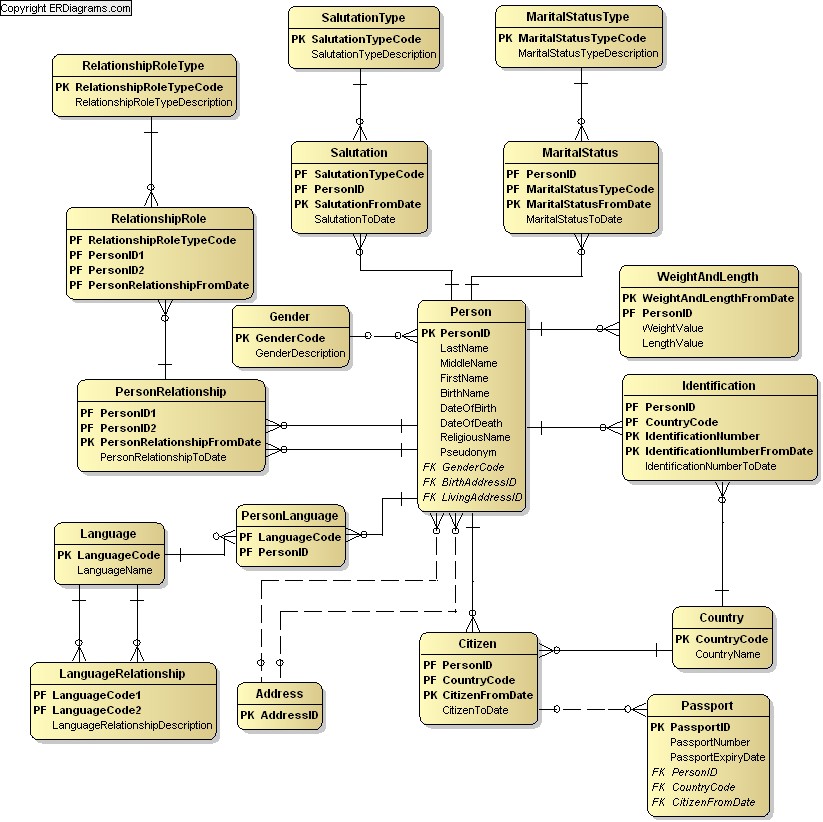

Person Data Model, ERD in idef1x and crows foot notation

Click on the image to enlarge

Notation: Crow's Foot
IDEF1X Notation | Crow's Foot Notation

Entities in this data model:
Address ,Citizen ,Country ,Gender ,Identification ,Language ,LanguageRelationship ,MaritalStatus ,MaritalStatusType ,Passport ,Person ,PersonLanguage ,PersonRelationship ,RelationshipRole ,RelationshipRoleType ,Salutation ,SalutationType ,WeightAndLength
