Person Data Model

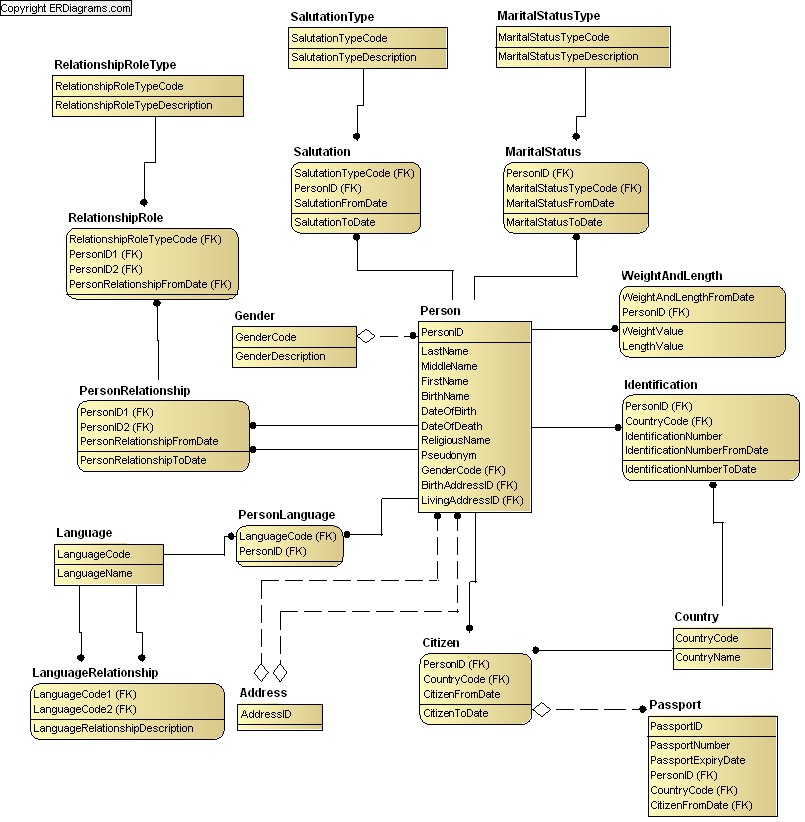

This model describes a person. The model supports the storage of historical data. These are the entities with attributes FromDate and ToDate. Please note that the address entity is not complete.
Click on the image to enlarge
Notation: IDEF1X
IDEF1X Notation | Crow's Foot Notation
Entities in this data model:
Address ,Citizen ,Country ,Gender ,Identification ,Language ,LanguageRelationship ,MaritalStatus ,MaritalStatusType ,Passport ,Person ,PersonLanguage ,PersonRelationship ,RelationshipRole ,RelationshipRoleType ,Salutation ,SalutationType ,WeightAndLength
